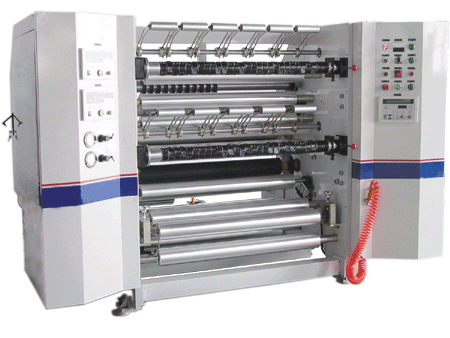

HC-K1300 double axis central coiler slitter

所属分类：Glue free series slitting machine (paper, film, PE
浏览次数：9796次
发布日期：2022/9/19 10:20:33

我要询价

产品概述

Scope of application
Suitable for slitting of composite films and other materials.
Features
1. The feeding seat is a shaft connected type, equipped with a fully automatic material edge aligning device.
2. The tension of unwinding material is controlled by magnetic powder brake and automatic tension control.
3. The tension of the coiling shaft is controlled by individual slip, so that the tension of each coil of finished product is controlled evenly.
4. The finished product reeling is equipped with a surface sub wheel to make the reeling material more flat.
5. The slitting cutter is equipped with upper and lower round cutters.
Optional equipment
1. Shaftless discharge seat: lift arm type shaftless clamping, which shortens the feeding time and improves the efficiency.
2. Industrial flat cutter can be selected as the slitting cutter.
Technical parameters
1. Mechanical width: 1.0M/1.3M/1.6M
2. Raw material diameter: Ø 800mm
3. Strip width: 50mm~
4. Paper tube: 3 "(Ø 76.2mm)
5. Coiling diameter: Ø 400mm
6. Stripping speed: 0-200M/min
7. Power supply: 380V, 50HZ, 3PHASE
-Due to the continuous improvement of product design, the above information is for reference only.
-If you need detailed data, please contact the business personnel or fill in the specification form, and we will handle it for you as soon as possible!
